Basic Info.

Model NO.	PLD800 Aggregate Batcher
Condition	New
Color	as Customer Need
Discharge Door	Pneumatic Open
Batching Accuracy	2%
Delivery Time	15 Days
Loading Height	3m
Storage Hopper Volume(M3)	2×2
Max. Weighing	1500 Kg
Weighing Hopper Volume	800L
Batching Aggregate Category	2
Transport Package	Standard Packing for International Transport
Specification	Production capacity 48m3/h
Trademark	FOCUS
Origin	Zhengzhou, China
HS Code	84743100
Production Capacity	100 Sets Per Month

Product Description

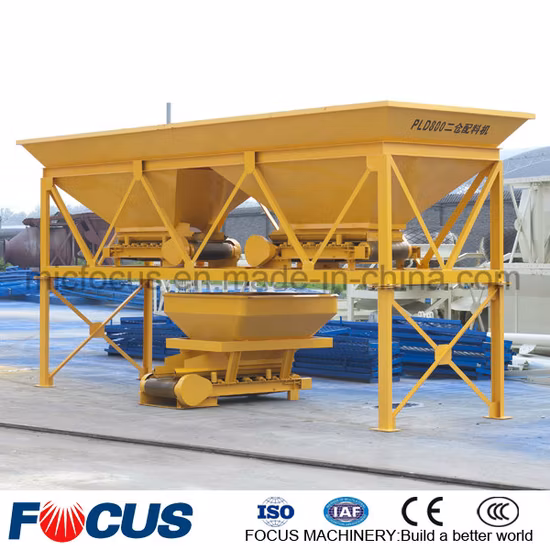

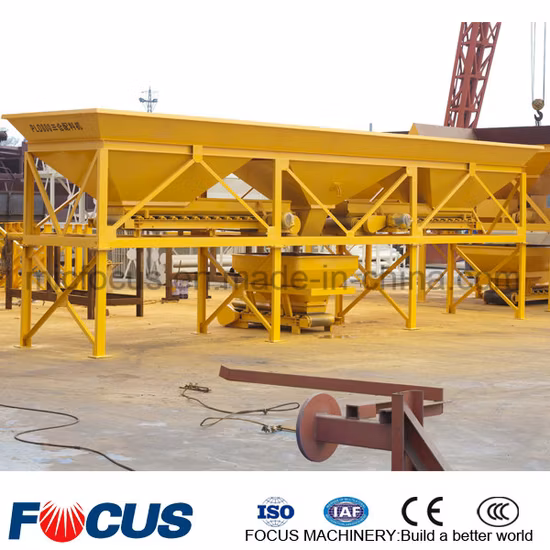

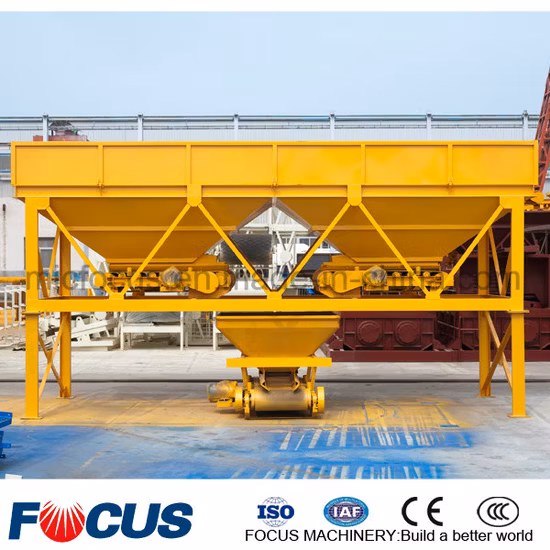

PLD800 Aggregate Weighing Hopper, 48m3/H Automatic Aggregate Batching System
Description of FOCUS aggregate batcher:
1. PLD series Focus aggregate batcher manufacturer (aggregate batcher )is a kind of automatically batching equipment which can automatically finish the batching procedures of 2-6 kinds (Second grade concrete) such as sand, stone, cement according to users design.
2. This machine is used together with concrete mixer.This serial aggregate batcher adopts electronic weighing, digital display, and have characteristic of accurate weighing, high precision batching, quick speed, strong control function and convenient operation.
3. After this serial concrete batching machine combines with relative concrete mixer, different types and specification combined concrete mixing station can be formed.
Why would our clients choose FOCUS aggregate batcher?
1. FOCUS PLD series concrete batching machine(aggregate batcher)is a kind of automatically batching equipment which can automatically finish the batching procedures of 3-6 kinds (Second grade concrete) such as sand, stone, cement according to users design.
2. This machine is used together with concrete mixer.This serial aggregate batcher adopts electronic weighing, computer control, digital display, wired remote control operation, and have characteristic of accurate weighing, high precision batching, quick speed, strong control function and convenient operation.
After this serial concrete batching machine combines with relative concrete mixer, different types and specification combined concrete mixing station can be formed.

Parameters of FOCUS aggregate batcher:

Model	Weighing hopper volume	Storage hopper volume(m3)	Production capacity (m3/h)	Batching accuracy(%)	Max. weighing (kg)	Batching aggregate category
PLD800	0.8	2×2	48	±2	1500	2
PLD1200-3	1.2	4×2.2	60	±2	2000	4
PLD1600-2	1.6	4×3.7	80	±2	3000	4
PLD2400	2.4	3×12	120	±2	4000	3
PLD3200	3.2	3×20	160	±2	5000	3
PLD3200-4	3.2	4×20	160	±2	5000	4
PLD4800	4.8	4×25	280	±2	8000	4

Thanks for visiting, by the time you are paying attention to us, our aggregate batchers are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visit us @ micfocus.en.made-in-china.com
